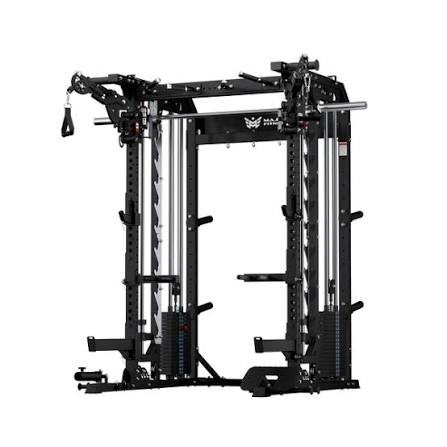

Major Fitness B52 EVO All-In-One Smith Machine
One Machine. Multiple Ways to Train.
Build a complete strength-training gym around the Major Fitness B52 EVO. Designed for serious home and garage gyms,
this all-in-one system combines a power rack, Smith machine, adjustable cable system, multi-grip pull-up station, and 360° landmine into one substantial training platform.
The B52 EVO takes that versatility a step further with integrated multi-angle Flex Arms, giving you significantly more control
over cable positioning and exercise setup. With multiple adjustment points, dual weight stacks, a 2:1 cable ratio, and a heavy-duty
steel frame, the B52 EVO is built to support everything from foundational strength training to advanced functional workouts.
Five Training Systems in One
The B52 EVO brings five essential training stations together in a single unit:
Power Rack — Perform squats, presses, rack pulls, and other barbell movements.
Smith Machine — A guided bar path for controlled strength training and a wide range of exercises.
Cable Pulley System — Perform rows, presses, flyes, curls, triceps work, and functional movements.
Multi-Grip Pull-Up Station — Multiple grip positions for pull-ups and bodyweight training.
360° Landmine — Add rotational, pressing, rowing, and core-focused movements to your workouts.
The result is a remarkably versatile home gym without having to dedicate space to multiple individual machines.

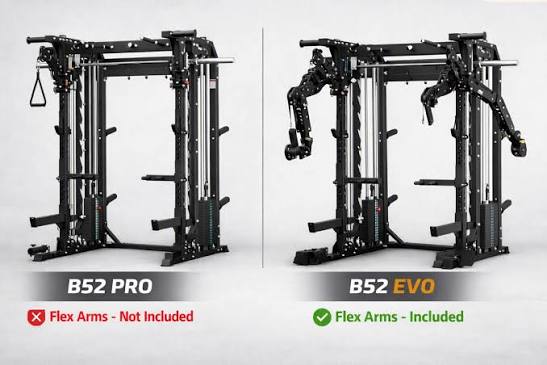

Integrated Multi-Angle Flex Arms
The B52 EVO's integrated Flex Arms give the cable system a new level of adjustability.
Each arm provides 5 horizontal and 4 vertical positions, allowing you to change cable angles to better
match your exercise and body position. Use the included Freedom Connector for linked movements or train with the arms independently for unilateral exercises.
This flexibility opens up a wide range of cable-based movements for the chest, back, shoulders, arms, legs, and core.
Smooth, Adjustable Cable Training
The B52 EVO features premium aluminum pulleys designed for smooth cable movement and a 2:1 pulley ratio.
The system includes dual 170-lb weight stacks, allowing you to make quick resistance changes without repeatedly loading and unloading weight plates.
Whether you're performing cable crossovers, rows, pulldowns, curls, triceps extensions, or functional
movements, the adjustable pulley system makes it easy to change your setup from one exercise to the next.
Built for Serious Strength Training
The B52 EVO uses a heavy-duty steel frame with upgraded 2" x 3" 12-gauge steel front uprights and 14-gauge steel in the rear and middle sections.
With a rack weight of approximately 810 lbs, the B52 EVO has the substantial feel expected from a serious strength-training system.
The Smith bar is rated for 400 lbs, while the J-hooks and safety arms are rated for up to 1,500 lbs according to the manufacturer's specifications.
Precise Positioning
A major advantage of the B52 EVO is its extensive adjustment system.
The rack features:
31 adjustment positions on the front uprights
32 adjustment positions for the cable system
11 Smith machine adjustment levels
1" upright holes
This allows you to fine-tune the position of your J-hooks, safety arms, cable attachments, and
other components to suit your height, exercise, and training style.
Designed With Safety in Mind
The B52 EVO includes safety arms and J-hooks with secure locking hardware and protective
plastic sleeves designed to help protect the rack uprights from unnecessary wear.
The integrated storage hook also gives you a convenient place to secure the Smith bar when it
isn't being used, helping keep the training area organized.
Expand Your Home Gym
The B52 EVO is more than a standalone rack. It is designed as the foundation of a customizable home gym.
The system is compatible with a range of additional 2" x 3" attachments and accessories,
allowing you to expand your training options as your needs change.
Start with the equipment you need today and build out your setup over time.
What's Included
The B52 EVO package includes:
B52 EVO Specifications
| Specification | Details |
|---|
| Product Type | All-In-One Smith Machine / Power Rack |
| Frame | 2" x 3" steel |
| Front Uprights | 12-gauge steel |
| Rear Uprights | 14-gauge steel |
| Middle Uprights | 2" x 2", 14-gauge steel |
| Overall Width | 78.7" |
| Overall Depth | 67.7" |
| Overall Height | 82.6" |
| Rack Weight | 810 lbs |
| Interior Width | 43.3" |
| Interior Depth | 55.2" |
| Pulley Material | Aluminum |
| Cable Ratio | 2:1 |
| Weight Stacks | 170 lbs per side |
| Smith Bar Capacity | 400 lbs |
| J-Hook Capacity | 1,500 lbs |
| Safety Arm Capacity | 1,500 lbs |
| Upright Hole Size | 1" |
| Front Upright Positions | 31 |
| Cable Adjustment Positions | 32 |
| Smith Adjustment Levels | 11 |
Who Is the B52 EVO For?
The B52 EVO is an excellent fit for lifters who want to build a comprehensive home gym around one
primary strength-training system.
It's well suited for:
Home and garage gyms
Strength and resistance training
Functional fitness
Powerlifting-style training
Bodybuilding
Full-body workouts
Couples and families who share a home gym
Experienced lifters looking for extensive cable adjustability
The Foundation for a Complete Home Gym
Instead of filling your gym with separate machines for every movement, the Major Fitness B52 EVO
gives you a versatile training platform designed to handle a wide variety of exercises in one footprint.
From heavy barbell work and Smith machine movements to cable exercises, pull-ups, dips, landmine training,
and functional movements, the B52 EVO gives you the tools to build and continually expand your home gym.
Major Fitness B52 EVO — serious equipment for a complete home training experience.
